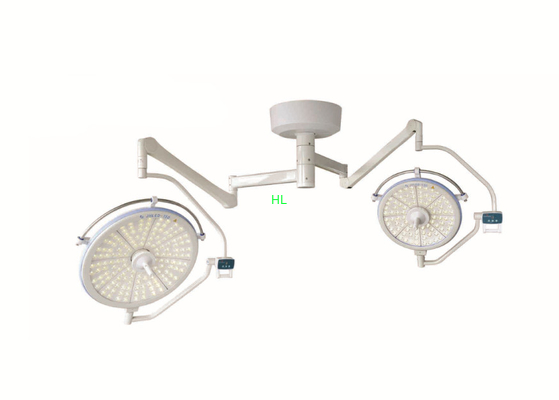

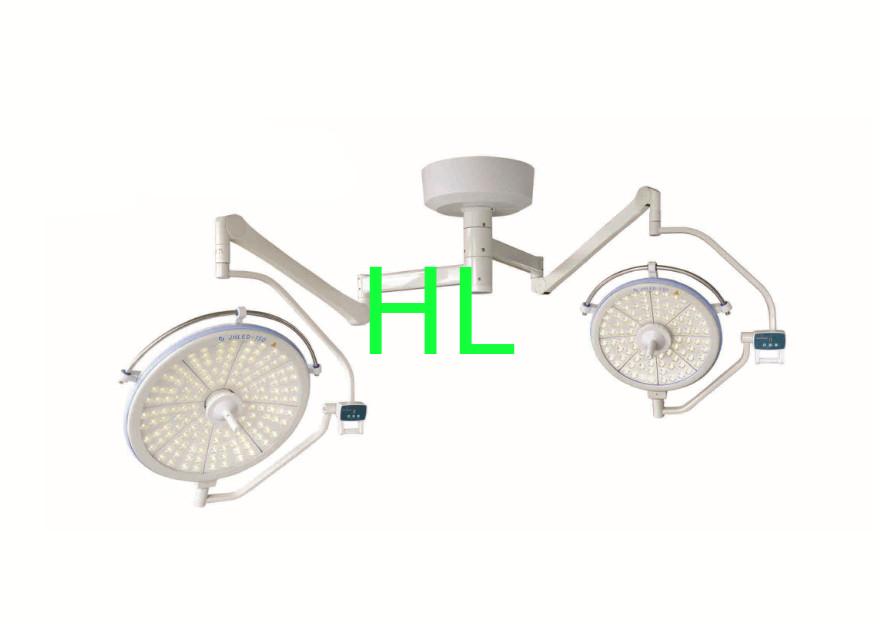

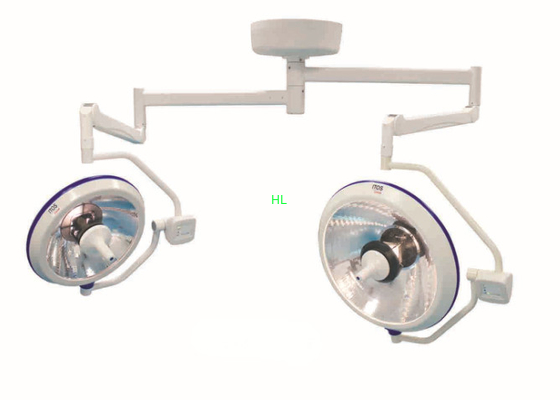

Shadowless Celling Surgical Operation Lamp for Hospital
Expected use
This product is used in various surgical lighting in hospital operating room.It can also be use in medical lighting situations in emergency room.
Conditions of use
Normal working conditions
Temperature:10℃~30℃;
Relative humidity:≤70%;
Atmospheric pressure range:860hPa~1060hPa;
This equipment can not be worked in flammable and explosive gas environment.
The type of device security:I type equipment;
Working system:continuous operation;
Liquid injection protection level:IPXO.
Power parameters
Power supply voltage:AC220(±10%)V;
Frequency:50Hz;
Input power:300VA;
JHLED 750 main lamp power:152W;
JHLED 550 main lamp power:88W.
Suitable mounting height:3200~3300 mm
Low-storey may bring inconvenience to users.please refer to the product diagram.in special circumstances,you should contact with the manufacturer when purchasing.
Technical specifications
|
|
JHLED M7 main lamp |
JHLED M5 main lamp |
|
Reflector diameter |
750mm |
550mm |
|
Center illuminance |
40~160klx |
40~120klx |
|
Spot diameter(d10) |
230mm |
150mm |
|
Spot diameter(d50) |
160mm |
120mm |
|
Light beam depth |
700mm |
700mm |
|
Color temperature |
4200±300k |
4200±300k |
|
Color rendering index |
Ra>85 |
Ra>85 |
|
Maximum illuminance |
Ec<1000W/m2 |
Ec<1000W/m2 |
|
Light source |
LED(1W×80) |
LED(1W×48) |
|
The model of LED |
CREE XPE-Q3 |
|
Simplified diagram
balance arm 2000
assistant lamp
handle
control box
rotating arm
decorative layer
balance arm 3000
main lamp
floor
Circuit diagram
operating room
power supply
switch
transformer of the main lamp
constant-current source
drive control
main lamp
assistance lamp
user interface
Installation
The equipment is fixedly mounted on the roof. the floor must bear the weight of the device,but also bear the force moment because of partial load and the operation. In order to ensure the safety ,the floor should have enough bearing capacity and strength.
Users can make construction according to the following pictures.
Floor installation program
pressure plate
floor plate on the roof
mounting bracket
roof of decorative layer
mounting base
mounting disk
flat washer
nut
spring washer
screw
superficial treatment :antirust lacquer
All fasteners of the installed components must be reliable and fastening to prevent the harm due to loose.when mounting,the bottom of mounting base must be adjusted to level condition,otherwise it would cause the drift of lamp.ground wire(color :yellow or green) must be grounded reliably ,in order to ensure the use of safety.
With installed problems,please contact with the manufacturer before construction.
