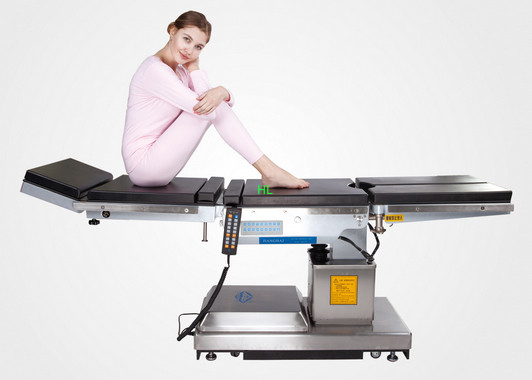

CE / ISO Approved Electro - Hydraulic Surgical Operate Table For Clinical Use

Electro-hydraulic surgical Operate Table for clinical use

Main Usage & Structure

a) Main Usage: Electric operating table can be operated for clinical use.

b) Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

2,Specifications

Dimension of table top:

Overall Length……………………………………………………………………2100mm

Width………………………………………………………………………………500mm

Dimension of section:

Head Section……………………………………………………………250×500mm

Back Section………………………………………………………………465×500mm

Kidney Bridge…………………………………………………………75×500mm

Seat section…………………………………………………………630×500mm

Leg Section…………………………………………………………………600×240mm

Table top of from floor

Min Height…………………………………………………………………700mm

Max Height……………………………………………………………………1150mm

Adjust…………………………………………………………………………………450mm

Range of movements:

Reversed Trendelenburg……………………………………………………………≥30°

Trendelenburg……………………………………………………………≥25°

Lateral Tilt………………………………………………………………………≥25°

Backward and Forward Movements…………………………………………≥530mm

Adjustment of sections:

Head Section Raised  from the horizontal………………………………………≥45°

Head Section lowered from the horizonta……………………………………≥90°

Back Section Raised from the horizontal……………………………………≥75°

Back Section Lowered from the horizontal……………………………………≥30°

Leg Section Lowered from the horizontal……………………………………≥90°

Leg section opened…………………………………………………………………≥90°

Kidney Bridge Elevated (When optional)………………………………≥80mm

Level reset zero (When optional)……………………………………………………±2°

Lifting speed……………………………………………………………………4～16mm/s

safe working load…………………………………………………………………270kg

Device safety sort:  Ⅰ   B

Ingress Protection:IPX4

Power:(AC)220V,50Hz

Internal electric source:(DC)24V

Battery capacity ≥ 2.4AH

3,Structure

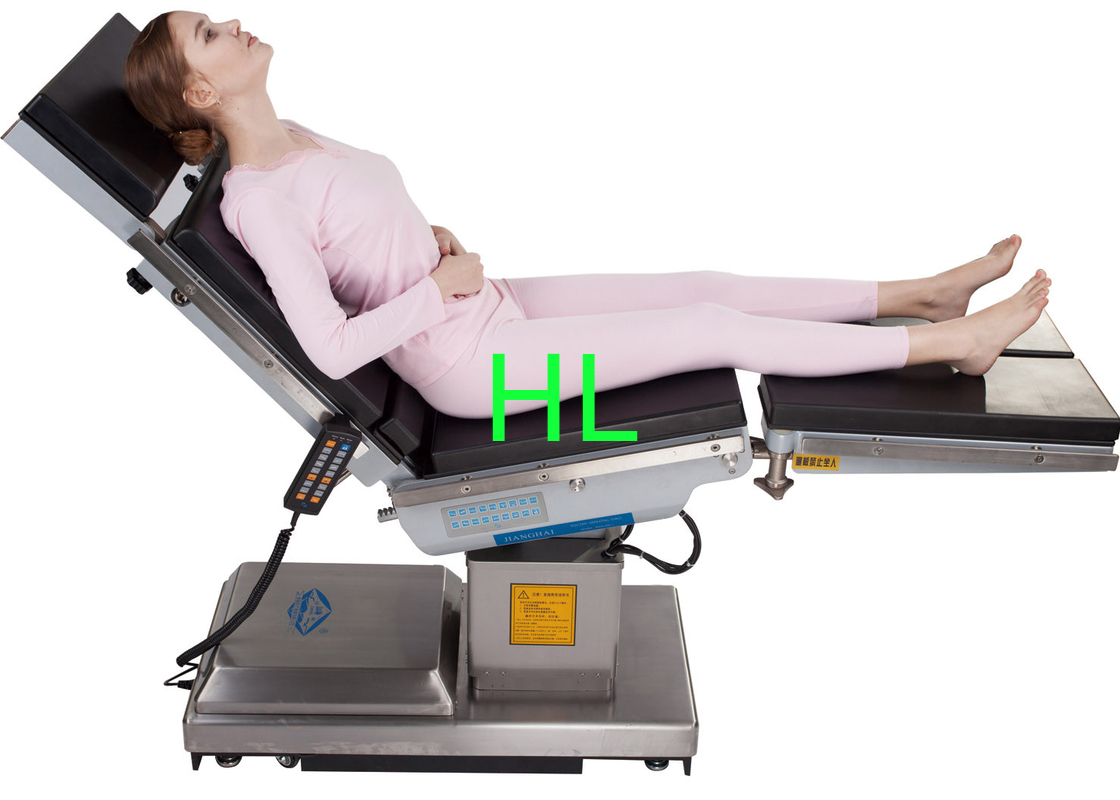

3.1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.

3.2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section. The forward and backward movement of tabletop can make C-arm perspective quick and easy.

3.3 The reset function and emergency power supply is Optional. Emergency power supply is made of lead-acid batteries, which can be automatically charged. Emergency power supply can start to work automatically when the power is off.

3.4 The main material is stainless steel, high-intensity cast iron, aluminum, good solidity.

3.5 Electric operating table mattresses are produced by the high-density sponge covered leatherette materials or overall bubble forming.

3.6 The appearance of the stainless steel round cover and base is nice and elegant. The cover is dust-proof and water-proof. The table is stable and practical.

3.7 Electric operating table equipped with electric brakes, electro-hydraulic brake cylinder to achieve bed. Four legs have self-compensation function, height can be adjusted automatically to eliminate the impact of uneven floors. At the same time with the emergency manual release feature.
