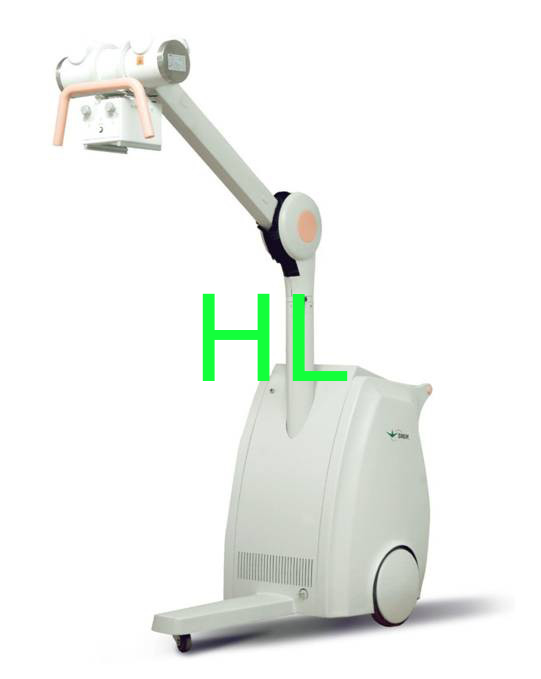

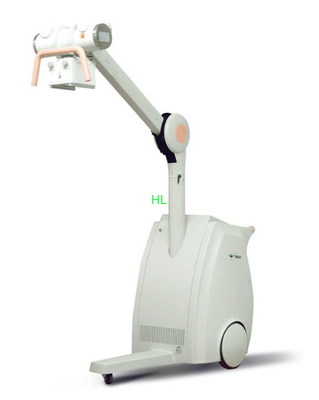

X-ray Mobile unit: High Frequency Combined X Ray Radiography System
Application:
PX series mobile X-ray system can be used mainly for radiography in the operation room, emergency
ward, orthopedics and surgical treatment. Apply high frequency conversion technology, greatly improve
image quality, shorten exposure time, and reduce the harmful radiation to human body. Digital high
frequency generator, Ergonomics designed, compact structure, Microcomputer-control, easy to operate,
maintain and move.
Configurations
|
No. |
Component |
Part Number |
Manufacturer |
Quantity |
|
1 |
Mobile Carriage |
- |
WDM |
1 |
|
2 |
20kW H.F. Generator |
X671D |
WDM |
1 |
|
3 |
X-ray Tube Assembly |
FB·GT22A |
WDM |
1 |
|
4 |
Collimator |
M-38 |
WDM |
1 |
Technical Specification:
|
Component |
Specifications |
|
High Frequency Generator |
Part Number: X671D Power: 20kW Radiography kV: 40~125kV; Maximum mA: 200mA mAs: 1~320mAs Invert Frequency: 30KHZ APR Function: Available Power Supply: 230VAC± 10%, single-phase, 50Hz/60Hz Power Capacity: 5kVA Internal Resistance of Power Supply ≤2.5Ω Fault Detection and Diagnosis |
|
X-ray Tube Assembly |
Part Number: FB·GT22A Rotating Anode Focal Power: Small Focal 15KW Large Focal 35KW Focal Spot: 0.6mm/1.2mm Anode Heat Capacity: ≥140kHU |
|

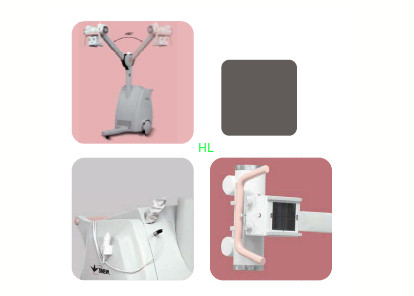

Mechanics System |
Arm Lateral Rotating (Left-Right) range: ±90°; X-Ray Component Rotating range: ≥-15°~+105°; X-Ray Tube Focal Point to Ground movement range: 650mm-2000mm; Front W heel Rotation Angle: ±360° Collimator Rotating Around Tube: ±45° Tube Rotating Range: -25°~+120° System Braking Force: ≤40N |
|
Collimator |
Part Number: M-38 Operating: Manual Indicate Light: luminosity: 12VAC / 100W Switch Time: ≥30 Seconds (Auto) |
