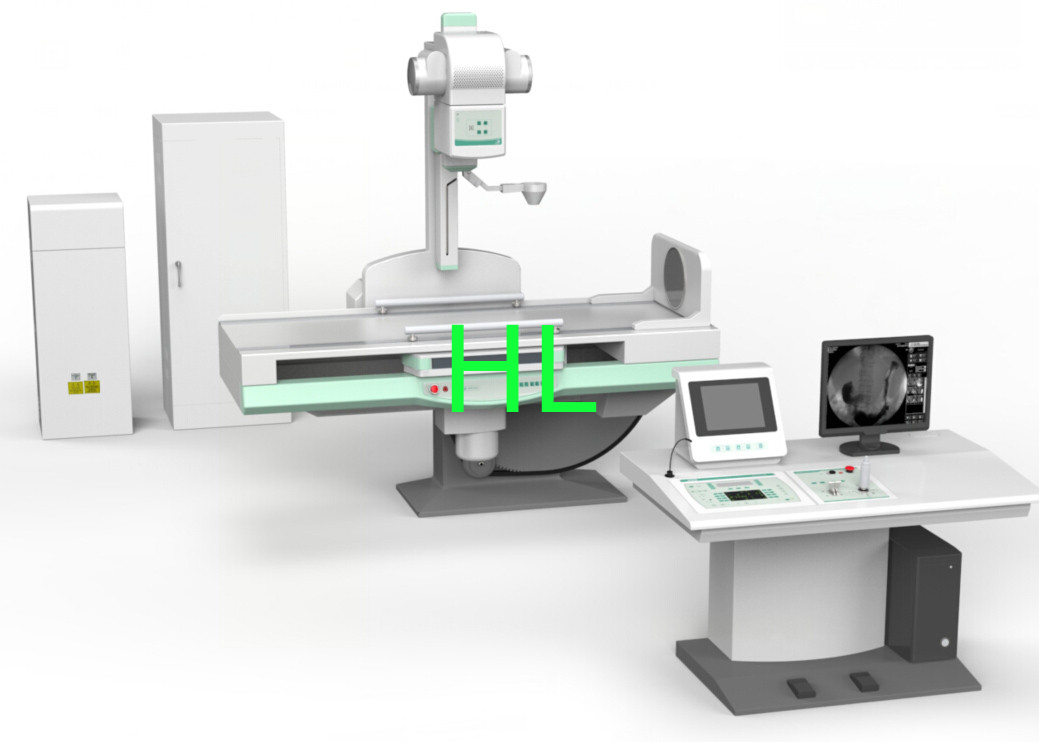

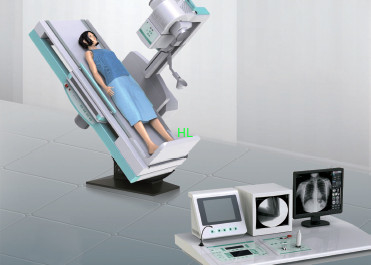

CE / ISO Approved Digital R/F System With One Mega Pixel CCD Camera

China CE / ISO Approved Digital R/F System With One Mega Pixel CCD Camera supplier
CE / ISO Approved Digital R/F System With One Mega Pixel CCD Camera supplier CE / ISO Approved Digital R/F System With One Mega Pixel CCD Camera supplier

Large Image :  CE / ISO Approved Digital R/F System With One Mega Pixel CCD Camera

Product Details:

Place of Origin: China
Brand Name: HL
Certification: CE/ISO
Model Number: HL-D6800

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 218*139*148CM; 168*104*103 CM; 73*65*150CM
Delivery Time: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 sets/ per month
Contact Now
Detailed Product Description
Properties: Medical X-ray Equipments & Accessories OEM: OK
Market: Global World Image System: One Million Pixel Original High Resolution Medical CCD
X Ray Tube Current: 10mA—800mA , Grade Adjustment X Ray Tube Voltage: 40kV—150kV ,continuous Adjustment
X Ray Tube Input Power: Big Focus 75kW Small Focus 27kW
High Light:

hospital surgical equipment


medical surgical instruments

Digital Radio-Flouroscopy System




1. Creative thinking design opens a wide clinical function application

1) It has the function for gastrointestinal spot film, orthopedic photography, paediatrics photography, gynecological photography (hystero-salpingography) etc various inspections, photography way is DR digital acquisition, it truly achieves no conversion digital.


2. First-class quality in global world, original imported high frequency host and high speed tube

1) The highest inverter frequency 200KHz high frequency high voltage generator

Constant direct current high voltage output, it can achieve high quality monochromatic X-Ray and eliminate the harmful effect of soft ray to image thoroughly.

2) Equipped with high performance and large capacity X-Ray tube Adopt 0.6/1.2mm2 dual focus, 300KHU large capacity and high speed X-Ray tube,it is suitable for long time and high intensity clinical examination.


3. High definition digital image chain to ensure that minor lesions can not be passed.

1) Imported DR flat panel detector, it does not need any conversion but it can finish digital photography of each position to achieve real direct digital.

2) DR flat panel detector DR connected with image processor achieves low noise and rich contrast image, edge enhancement filtering device makes the edge of image more clear and sharp.


4. Equipped with new digital image system achieves rich digital image processing function

   Advanced digital image processing function

1) Preassembled Windows XP professional operating system and professional image processing software.

2) Image playback: thumbnails view, sequence replay tools.

3)Image processing: W/L adjustment, arrows and words etc labels, angle and distance measurement, image scaling, translation, up/down conversion, left/right conversion, rotation, black and white reversal.

4) Image storage: image real-time storage, DICOM image send, ashampoo Burning Studio, derived storage (choose various storage ways Bitmap, JPEG, AVI etc to be used in Word and Power-point office software, it is convenient for the doctors to write diagnostic reports and papers ).

5) DICOM3.0: can be connected with laser camera to print film and PACS  NETWORK.

6) Medical record management: database management, graphic report, support for WORKLIST.


5. Comfortable, convenient and exquisite diagnostic table

1) Visual display of the man-machine interface, adopt touch screen control technology in global world, makes man-machine conversation more visual, convenient and easy to understand.

2) One combined operating handle is easy to control the movement and spot fil of  bed body, image systemand rotating foot pedal.

3) The humanized design of the lateral switch in diagnostic table can control the movement of the table and image system, also make the operation nearby the station more convenient.

4) Moving range of the film spot device and image system is more than 720mm. It adopts the "machine move, people do not" control mode to finish a series of inspections from the esophagus to lower abdomen easily.


Main Technical Parameters:




Technical Parameters








Internal Resistance


Digital control X-ray High Voltage System





Inverter Frequency

200 KHz



Tube voltage

40kV—150kV ,continuous adjustment

Tube current

10mA—800mA , grade adjustment


0.1mAs—630mAs, grade adjustment



Control Interface

LCD touch screen

Control Handle

One-button operating handle ( control spot film, table and image system movement )


Tube voltage

40kv—125kv, continuous adjustable with 1kV each grade

Tube current

0.5mA—6mA continuous adjustable

Fluoroscopic time


 X ray tube

Tube Focus:big/small

1.2mm /0.6mm

Input power

Big focus 75kW Small focus 27kW

Anode thermal capacity


Rotary anode speed


 Exposure Synchronous control:


power Input:

DC 24V 2A

Digital Remote control Diagnostic Table of Upper Tube

Table rotate Movement range


Table transverse movement distance


Longitudinal movement distance of radiography frame and spot film device



1100 mm,1500 mm

Method to control table

remote control, table-control, Soft boot and stay of frequency conversion

Rotated foot pedal

±360º  Infinite rotation

X-Ray tube focus to film distance

1100~1500 mm two grades electric adjustment


Electric multi-leaf

Fixed grid for table use

Grid density: 215L/INCH, Ratio: 10:1, Focusing distance: 130cm, stationary type :18” ×18”

Digital image TV system

Image Intensifier& workstation

9” Toshiba (12inch is for optional)+One mega pixel CCD Camera+workstation

Referring to the detail in parameter list
