CE / ISO Color Doppler Portable Ultrasound with Printer / UPS / Probes

Color Doppler Portable Ultrasound with Printer, UPS, Probes

Features

It is equipped with the function of general ultrasound image scanning, measurement, calculation,
display, query, body mark, annotate, print, medical records storage etc., as well as editing the
corresponding inspection reports and system settings.It supports DICOM (Digital Imaging and
Communication in Medicine) protocol, which is a widely accepted medical imaging standard in the
international arena, and can exchange data and information easily internationally. More over, it can be
regarded as a terminal accessing to the PACS (Picture Archiving and Communication System)
network. (PACS is the Medical Picture Archiving and Communication System, which greatly facilitates
the modern network management systems of the hospitals and the network remote diagnostics for the
experts)This instrument is a function formidable model, and is convenient and easy to operate,
support a various display mode, such as B, B / B, B/4B, B / M, B / PWD, CFM, CDE, B / CFM / D.

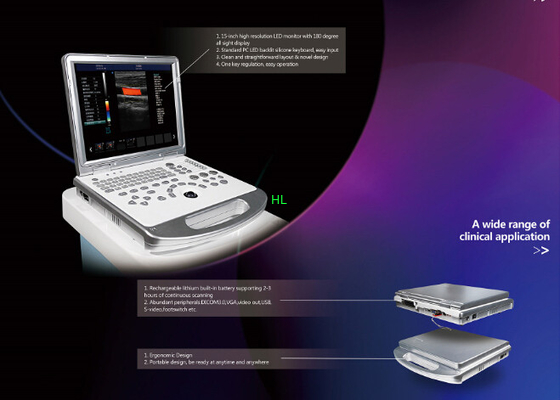

In terms of the image display, with a large-screen LCD color monitor, flicker-free, high image
sensitivity, high resolution, rich gray scale, clear levels and environmental can be made.Meanwhile,
the display can do the up and down, left and right, front and rear, and rotation adjustment, which
greatly facilitate the users.

Scope

This instrument is appropriate for human liver, gall bladder, spleen, kidney, pancreas,
cardiovascular and other organs and also gynecology, obstetrics, vascular, oncology and other
medical diagnosis and inspection.

Taboo

The instrument can neither do the diagnosis and inspection for gas organs, such as:
gastrointestinal, lung and other organs, nor burn or body surface tissue damage; Other Considerations
See the product manual.

Safety Requirements

This instrument is in strict accordance with national standards GB9706.1-2007 "Medical electrical
equipment Part 1: General requirements for safety", GB9706.9-2008 "Medical electrical equipment
ultrasonic medical diagnostic and monitoring equipment safety requirements" and national industry
04standards YY00505-2005/IEC60601 -1-2:2001 "medical electrical equipment - Part 1-2: General
requirements for safety - Collateral standard: Electromagnetic compatibility requirements and tests,"
design, manufacture. Click on the instrument dangerous type of protection: Class Ⅰ B type.

Sound output data released

Probe nominal frequency: 3.5MHz
Negative peak sound pressure: P-= 2.42MPa
Output beam intensity: Iob = 4.86mW / c ㎡
Spatial peak temporal-average intensity: Ispta = 11.72mW / c ㎡

The main technical indicators

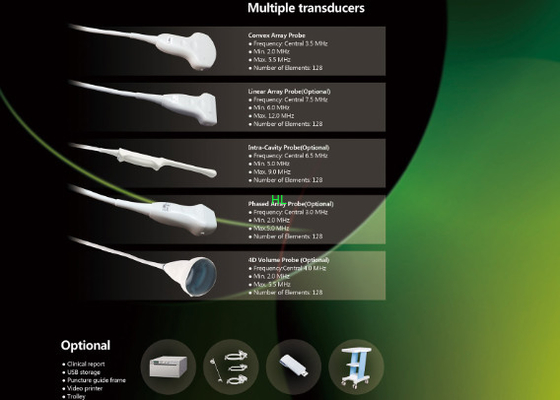

1 Probe
Convex probe 128 elements R50 wideband                                Multi-frequency

                                                                                             2.0,3.0,3.5,4.0,5.5MHz
High frequency linear probe 128 elements R40 wideband             Multi-frequency
                                                                                             6.0,6.5,7.5,10,12MHz
Trans-vaginal probe 128 elements R10 wideband                        Multi-frequency
                                                                                             5.0,6.0,6.5,7.5,9.0MHZ
Phased array probe 64 elements R20 wideband                           Multi-frequency
                                                                                             2.0,2.1,3.5,4.0,5.0 MHz
2 Detection depth: ≥ 300mm.
3 Lateral resolution: ≤ 1mm (depth ≤ 80mm)
≤ 2mm (80 <depth ≤ 130mm).
4 vertical resolution: ≤1mm(depth≤80mm)
≤2mm(80<depth≤130mm)
5 blind zone: ≤ 5 mm.
6 precision geometric position: horizontal ≤ 10%.
Longitudinal ≤ 10%.
7 Signal channels: 64 channels
8 Display: 15/17 inch LCD monitor.
9 PAL output interface
10 Grey Scale: 256
11 Power range: AC220V ± 10% 3A.
12 Host Power: DC12.8V 11.5A
13 Input power: ≤ 300VA.
14 continuous working time: ≥ 8h.

Environmental Requirements

Ambient temperature range: +5 ℃ - +40 ℃.
Relative humidity: ≤ 80%.
Atmospheric pressure range: 700hPa-1060hPa.
Electricity Supply Source: DC 12.8V/11.5A
Use a separate power supply network sockets.
Away from the strong electric field, magnetic devices, and high-voltage equipment.

Transport and storage environmental requirements
Ambient temperature range: -5 ℃ - +40 ℃.
Relative humidity: ≤ 80%.
Atmospheric pressure range: 500hPa-1060hPa.
