Product Details:
Payment & Shipping Terms:
|
| Type: | Dental Equipment | OEM: | OK |
|---|---|---|---|
| Market: | Global World | Power: | A.C. 220V / 50Hz 10A |
| Temperature: | 5～40℃ | Relative Humidity: | 30％～75％ |
| Package: | Wooden Cases | ||
| High Light: | hospital surgical equipment,medical surgical instruments |
||
High Quality Dental Unit CE & ISO Certification
Introduction of Products
|
Safety type: |
Type I |
|
Protection type: |
Type B |
|
Power type: |
Single phase, three cores, power grid supply |
|
Voltage: |
a.c.220V |
|
Frequency: |
50Hz |
|
Input power: |
1200VA |

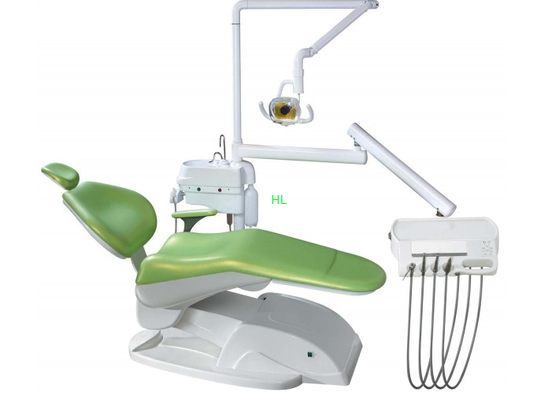

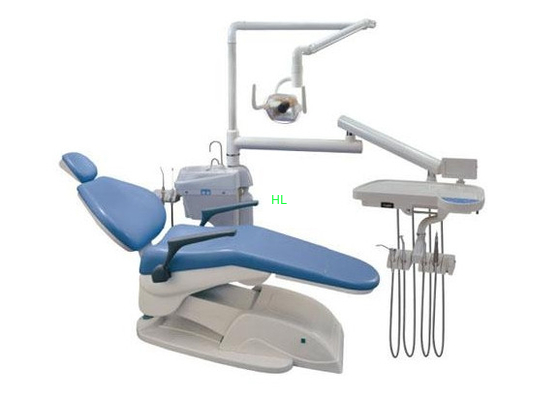

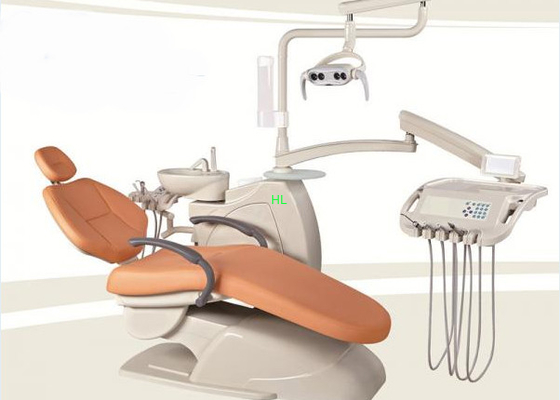

This product is a dental unit specially produced and provided for qualified personnel in dentistry clinical and related operating steps, composed of a complete set of interconnected dental apparatuses and components, can be used for dental diagnosis, therapy and operation. This product is mainly composed of a dental patient chair, mouth lamp, instrument tray, three-purpose gun, gargle supply device, saliva sucker, spittoon, film-viewing lamp and foot switch.
Operation Conditions
To ensure the normal use of the unit, the input water, air, electricity and working environmental parameters are as follows:
1. Air source: air pressure 0.6MPa ~ 0.80Mpa, flow > 50L / min, oil free
2:0.20MPa ~ 0.40MPa, water pressure flow > 10L / min <25 degrees of hardness
3: a.c.220V / 50Hz10A, power supply
4. Environment: temperature5～40℃, relative humidity 30％～75％
Basic Parameters
High-speed air turbine hand-piece no-load speed (pressure 0.22Mpa): ≥35X104r/min
Low-speed air motor hand-piece no-load speed (pressure 0.30Mpa): ≥18X103r/min
Oral cold-light lamp illumination: weak light ≥8000 lx, bright light ≥15000 lx
Film viewing lamp illuminance: ≥2000 lx
Dental patient chair’s loading capacity: ≥1323 N (135 Kg)
Tool tray loading capacity: ≤5Kg
Max. seat cushion height from ground: ≥700mm
Min. seat cushion height from ground: ≤500mm
Scope of backrest tilt: 105°～170°
Scope of head frame stretch: 120mm
Max. seat cushion tilt angle: ≥12°
Temperature of constant-temp. water heater: 40℃±5℃
Work space: Length≥4000mm/ width = 2600mm/ height≥2000mm
