Product Details:
Payment & Shipping Terms:
|
| Commodity: | PVC FILM | Size: | 250mm*(0.25-0.30)mm 130mm*(0.25-0.30)mm |
|---|---|---|---|
| Colour: | Transparent&colorful | Application: | Oral Liquid, Capsules, Tablets, Pills And Other Pharmaceutical Products In Blister |
| Storage Instructions: | Transparent&colorful | Expiration Date: | 2 Years |
| High Light: | pharmaceutical packaging materials,pharma packaging material |
||

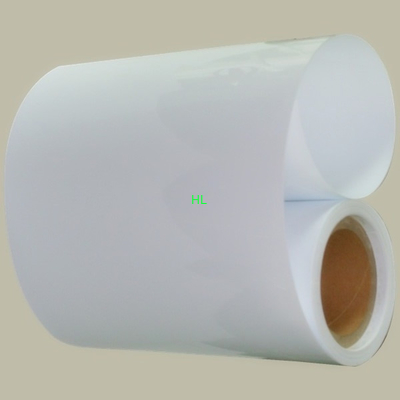

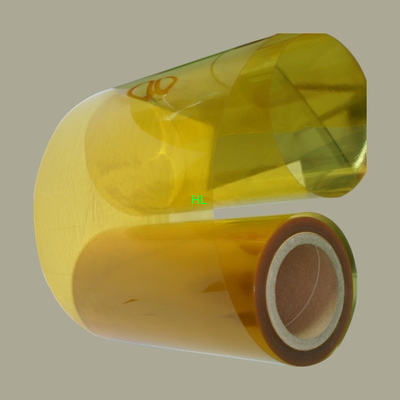

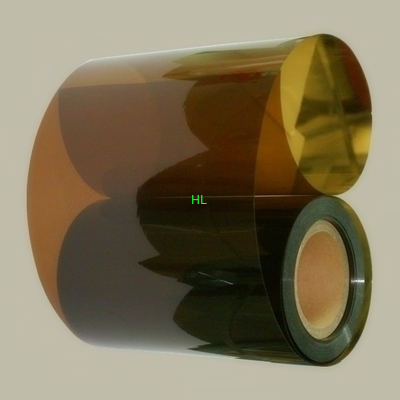

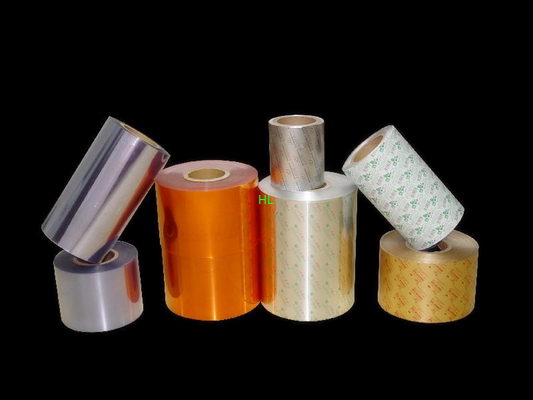

PVC rigid film 250mm*(0.25-0.30)mm 130mm*(0.25-0.30)mm Packing Material
PVC RIGID FILM
Production process:
Based on PVC resin with additives, It’s pharm grade packing material which processed by extrusion,rolling,
slitting etc
Feature:
PVC resin as main material with additives processed by extrusion, rolling,slitting etc to pack pharmaceutical
products in blister.
Property:
Light transmittance, moisture barrier, corrosion resistance, easy forming, thermoforming speed, outstanding
seal and peel seal
Application:
Oral liquid, capsules, tablets, pills and other pharmaceutical products in blister
Regular size:
Transparent&colorful
250mm*(0.25-0.30)mm 130mm*(0.25-0.30)mm
Technical specifications:
Thickness 0.15mm-0.5mm
Width ≤1000mm
Rolling Dia ≤600mm
|
Name |
Pharma grade PVC rigid film |
PVC/PVDC laminated film |
PVC/PE/PVDC laminated film |
|
0.10-0.50mm |
40g/m2 60g/m2 90g/m2 |
40g/m2 60g/m2 90g/ |
|
|
Tensile strength Mpa |
≥44 |
≥40 |
≥40 |
|
Falling ball impact |
≤40 |
≤40 |
≤40 |
|
Heat Shrinkage % |
|
≤±|6.0|% |
≤±|6.0|% |
|
Water vapor |
≤2.5 |
0.8≤ 0.6≤0.4 |
0.8≤ 0.6≤0.4 |
|
Oxygen transmission |
≤3.0 |
≤3.0 |
≤3.0 |
|
Heat seal strength |
≥7.0N/15mm |
≥6.0N/15mm |
≥6.0N/15mm |
|
Application |
Used for pharmaceutical |
Moisture proof, oxidation |
Excellent moisture proof, |
