| Properties: | Dental Health Equipment | OEM: | OK |
|---|---|---|---|
| Market: | Global World | Materials: | Composite Materials |
| Invertion Frequency: | 20kHz | Maximum Power: | 85 KVp, 10mA, 15s |
| Exposure KVp: | 61-85kVp | ||
| High Light: | hospital surgical equipment,medical surgical instruments |
||

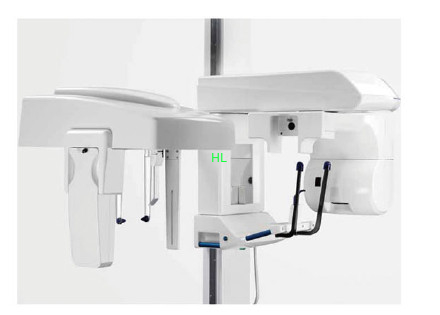

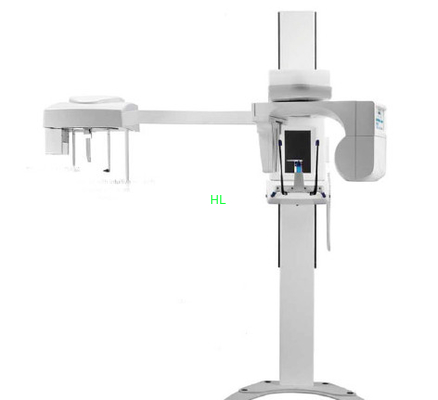

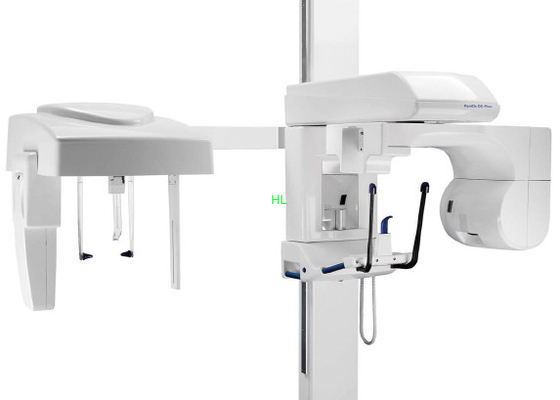

CE/ISO approved Digital Panoramic and Ceph Dental X ray system
Technical data of Digital Panoramic and Ceph Dental X ray system
1. GENERATOR
Constant potential high-frequency multi-pulse x ray generator
Invertion frequency 20kHz
Exposure kVp 61-85kVp
Exposure mA 4-10mA
Exposure time Panoramic max 15s
Voltage 220V
Maximum power 85 kVp, 10mA, 15s
2. X RAY TUBE
Focus 0.5mm
Inherent filtration >2.5mm Al
Heating load management for minimum waiting time
3. IMAGE SYSTEM
Sensor CCD
Imaging area 15 ×30 cm on Panoramic and 22 ×24 cm On Ceph
Imaging pixel 3000×1500 on Panoramic and 5000×4000 On Ceph
Spatial resolution >5lp/mm
USB interface
4. MACHANICAL SYSTEM
Focus image distance 51cm on Panoramic and 165cm on Ceph
Dental arch vertical magnification: 27%
Cephalometric magnification: 10%
X-ray tube vertical moving range 90-176cm
5 Compact control panel with intuitive symbols
6 X ray controls via keypad with spiral cable
7 Optional remote control board
8 Carriage postioning: motorrised horizontal travel, electromagnetic locking system for vertical movement
9 Weight: Pan ceph 205kgs, Pan solo 160kg
10 Room size: Minimum height: 220cm; Maximum height: 227cm; depth 110 cm; width 240cm for Pan ceph, 140cm for pan solo.
11 Free-standing base unit(optional)
